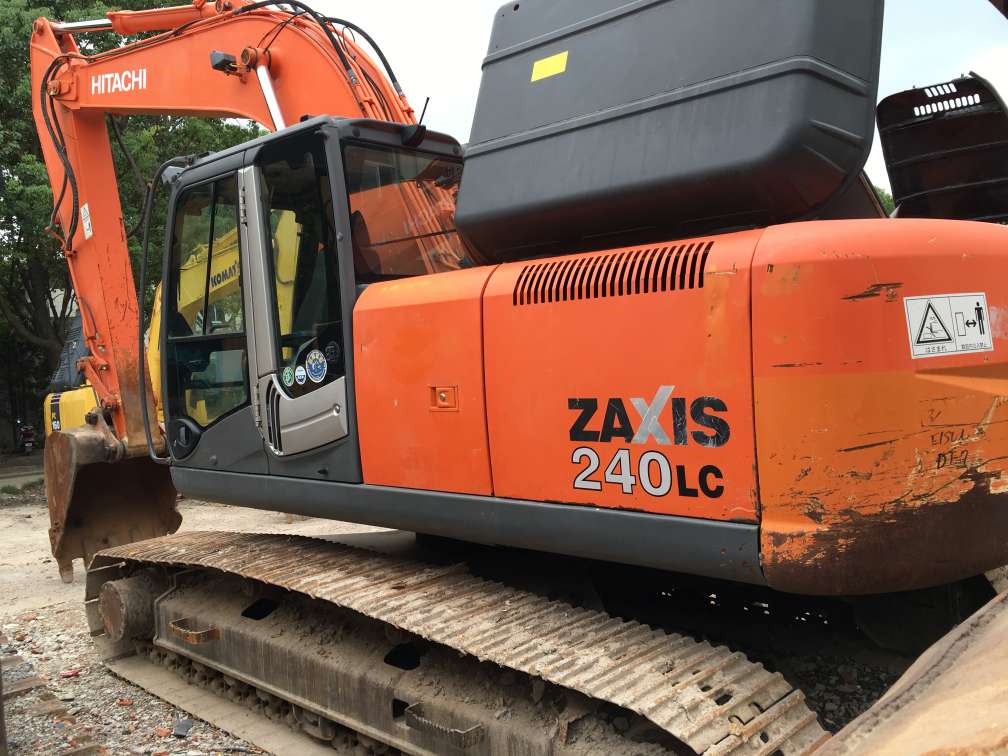

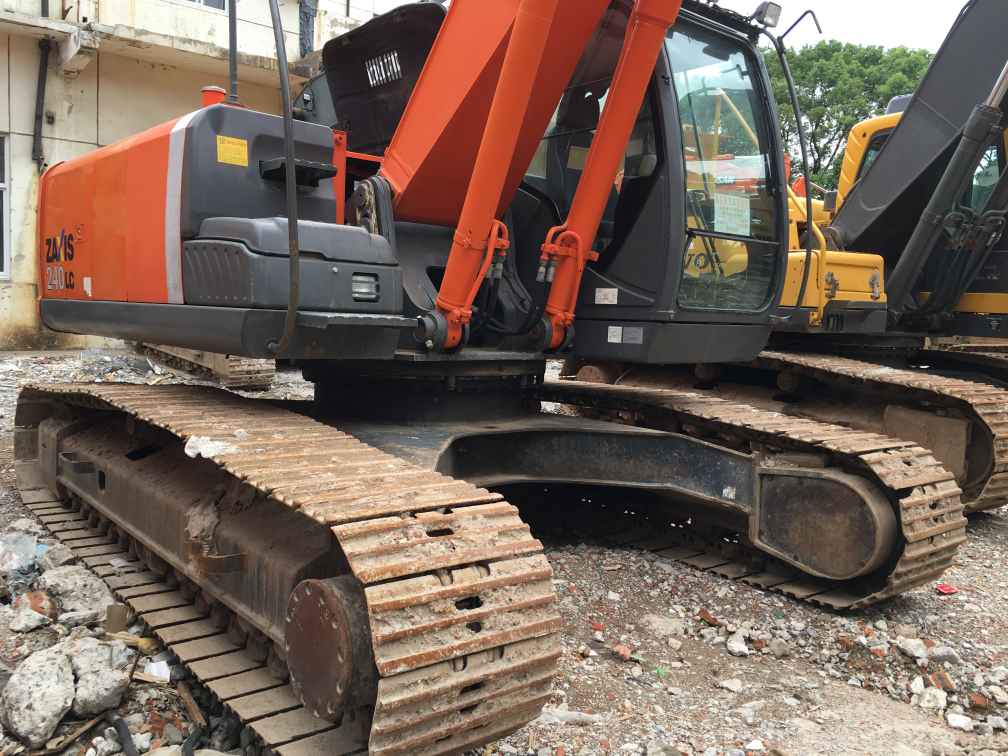

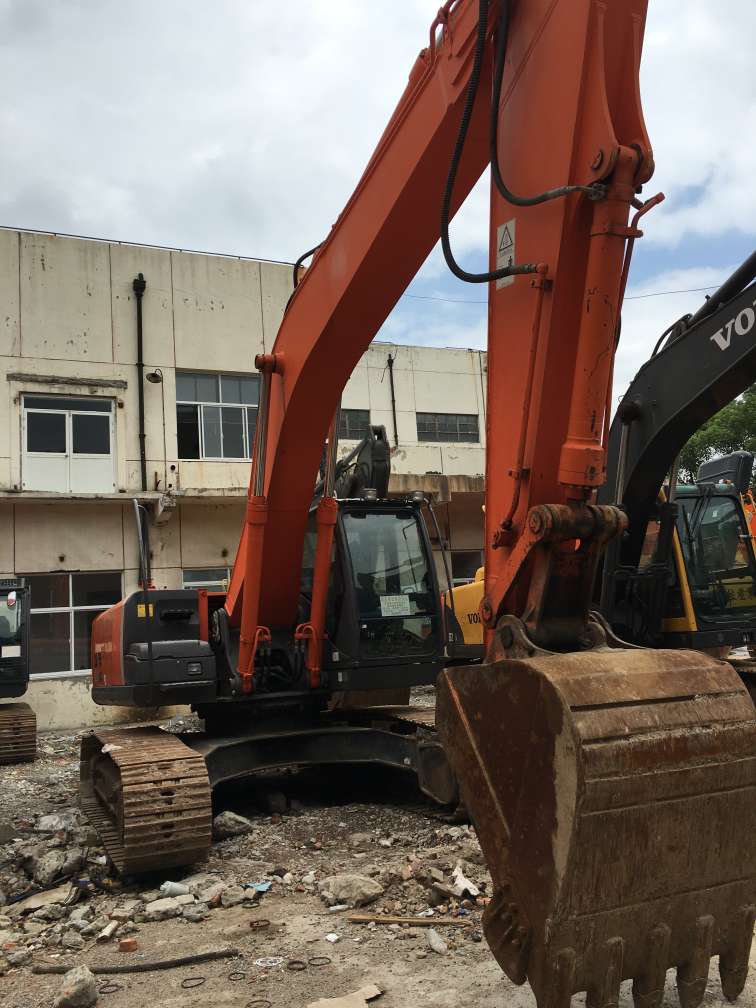

Used Excavator Hitachi ZX240-3, Year 2014, 1770H

  • Specifications

  • Quotation Online

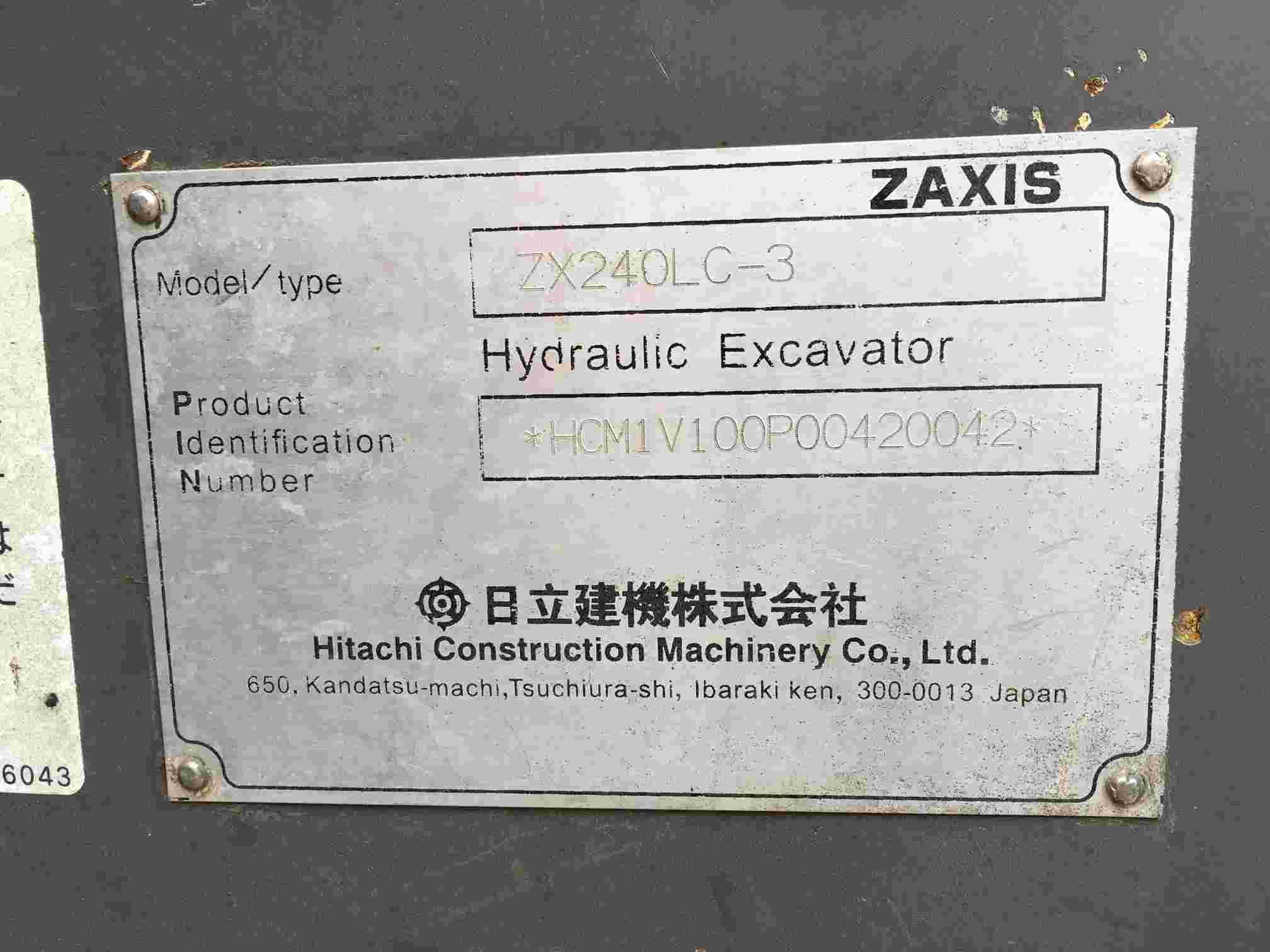

Model Hitachi Excavator ZX240-3
Year of Manufacture 2014
Working Hour 1770 H

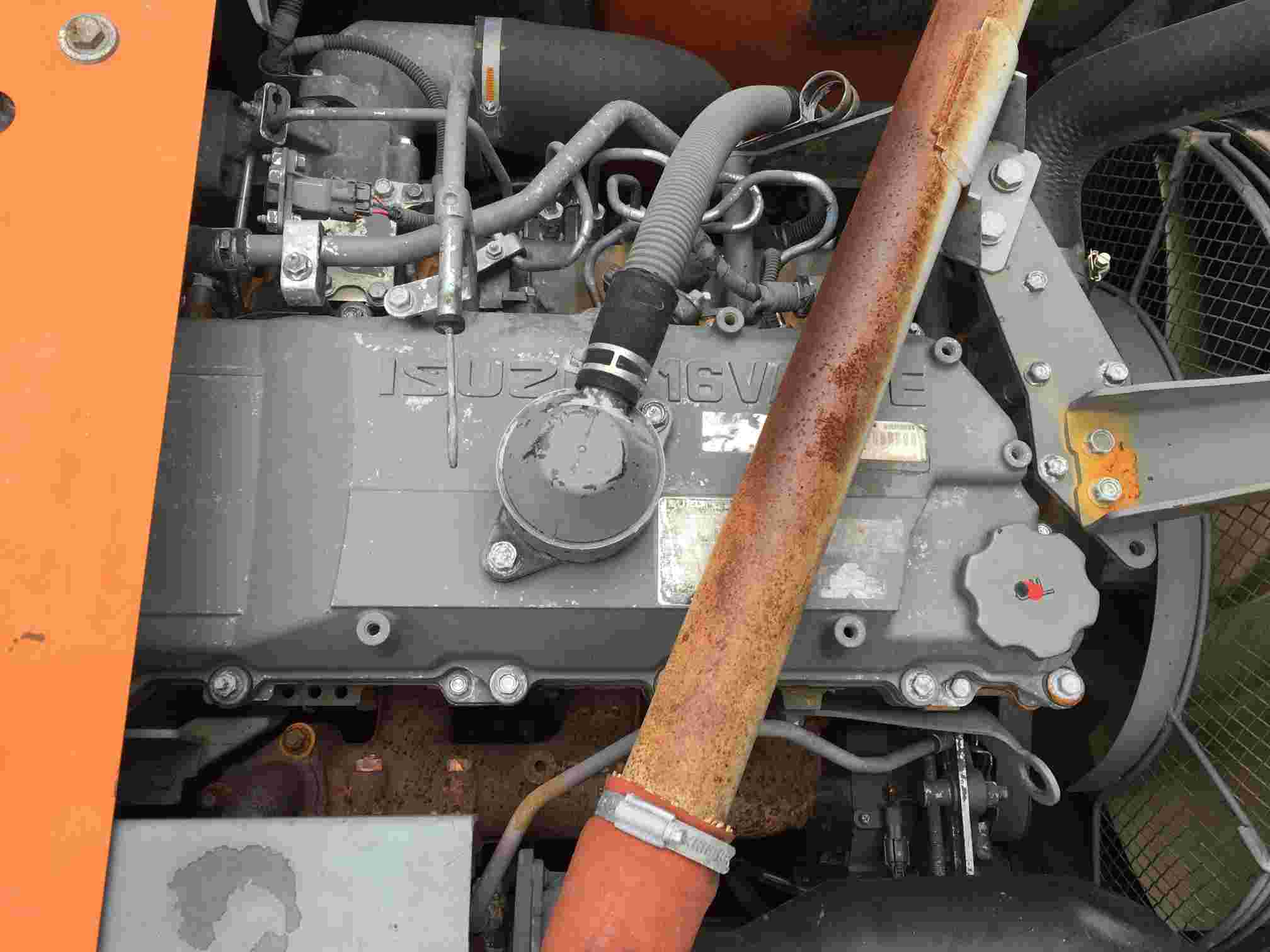

Engine Isuzu AH4HK
Bucket Size 1.1 M3
Operate Weight 24000 KG

Hitachi ZX240-3 excavator spec

The Hitachi ZX240-3 is a mid-sized hydraulic excavator that was manufactured by Hitachi Construction Machinery Co., Ltd. Here are some of its general specifications:


  • Model: Isuzu 4HK1X
  • Net power: 158 hp (118 kW) @ 1,950 rpm
  • Gross power: 177 hp (132 kW) @ 2,000 rpm
  • Displacement: 5.2 L


  • Main pumps: Two variable-displacement axial piston pumps
  • Max flow rate: 222 L/min (58.7 US gpm)
  • Max pressure: 34.3 MPa (4,980 psi)

Operating Weight:

  • Operating weight: 23,900 kg (52,700 lbs)

Bucket Capacity:

  • Standard bucket capacity: 1.2 m³ (1.57 yd³)


  • Track shoe width: 600 mm (24 in)
  • Number of track rollers: 8 each side
  • Travel speed: 5.5 km/h (3.4 mph)


  • Overall length: 9,870 mm (32 ft 4 in)
  • Overall width: 2,990 mm (9 ft 10 in)
  • Overall height: 3,070 mm (10 ft 1 in)
  • Max digging depth: 6,660 mm (21 ft 10 in)
  • Max digging reach: 9,880 mm (32 ft 5 in)
  • Max dumping height: 6,050 mm (19 ft 10 in)

Please note that these specifications are general and may vary depending on the specific model and configuration of the excavator.

HITACHI ZX240-3 excavator apply in Africa

The Hitachi ZX240-3 excavator is a powerful and reliable machine that can be used in various construction and mining applications in Africa. Its durability and efficiency make it suitable for use in tough African terrains.

Some of the potential applications of the Hitachi ZX240-3 excavator in Africa include:

  1. Construction: The excavator can be used in various construction projects such as building roads, bridges, and dams. Its versatility and ability to dig and move large amounts of earth make it ideal for such projects.

  2. Mining: The excavator can be used in mining operations, such as excavating and loading materials into dump trucks or hauling equipment. It can also be used for drilling, rock breaking, and other mining activities.

  3. Agriculture: The excavator can be used in agriculture applications such as digging irrigation ditches and removing tree stumps from farmland.

  4. Demolition: The excavator can be used in demolishing buildings and other structures.

In summary, the Hitachi ZX240-3 excavator is a versatile and reliable machine that can be used in various construction, mining, agriculture, and demolition applications in Africa.
